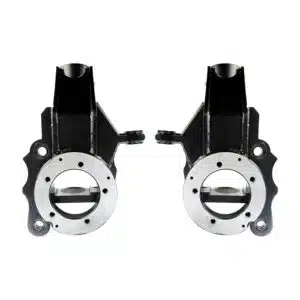

3″ LIFT SPINDLE – QTY 2

ADD-ONS
BILSTEIN SHOCKS (FRONT)
PROGRESSIVE LEAF SPRINGS
METHOD RACE WHEELS
SPLINE LUG NUTS

For those looking to lift their Ford Transit the right way, the WTD – 3″ Spindle Lift Kit is the best solution on the market. Unlike other lift methods, this spindle design maintains proper suspension geometry, avoiding stress on ball joints, coil springs, and the subframe. The result? A true 3-inch lift with zero loss in ground clearance and no unnecessary component wear.

Why Choose the WTD 3″ Spindle?

• True 3″ of Lift – No changes to ball joint angles, no preload on coil springs, and no subframe drop.
• Maximum Ground Clearance – Unlike other lift methods, this spindle does not reduce underbody clearance.
• Bigger Tire Capability – Run up to 265/70/17 tires for improved traction and performance on highways or trails (trimming required for proper fitment).
• Durable Powder-Coated Finish – Built to last in any environment.

Technical Notes

• Lower Ball Joint Replacement Required – This kit requires new lower ball joints. You can opt for factory or adjustable ball joints, which can be installed by WTD before shipping.
• Trimming Required – Lower front bumper, pinch weld, and door-side plastic must be modified for proper tire fitment.
• Wheel Spacers Recommended – A 3/16-inch thick spacer on the front axle can prevent subframe rub at full steering lock.

Important Fitment Information

***This spindle is NOT compatible with 6-lug Ford Transit models.***

Key Features

• 3 inches of true suspension lift for a stronger, more capable stance
• Increased clearance for larger tires without altering ride quality
• No change to suspension geometry, preventing premature wear on components
• Powder-coated finish for long-lasting durability
• Designed and manufactured in the USA

For those serious about lifting their Transit the right way, the WTD – 3″ Spindle Lift Kit delivers unmatched performance, reliability, and clearance.

LIFT	WHEEL TRAVEL	WHEEL SIZE	LUG PATTERN	BACKSPACING	OFFSET	BORE	TIRE SIZE
2" FRONT | 0" REAR	0’’ FRONT | 0’’ REAR	16x7.5	5x160	6.20	+50	65.00	255/70/16 (NO TRIMMING)

Spindle does require you to change your lower ball joints. You can choose to have WTD install factory ball joints or adjustable ball joints. If you would like your ball joints installed with your kit they will need to be added to your cart.

INSTALL LABOR – $720 (4 HRS)
ALIGNMENT – $160

YEAR	MAKE	MODEL
2015-CURRENT	FORD	TRANSIT 2WD 150 | 250 | 350 (SRW/DRW)

***This spindle will NOT work on Transits models with 6 lug applications***
