October 7, 2021WTD – Ford E-Series 5’’ Suspension Lift Kit “Baja Grocery Getter Complete Performance Package” Fox Shocks
$4,625.00
1 in stock (can be backordered)
- WHAT’S INCLUDED
- DESCRIPTION
- TECH SPECS
- INSTALL LABOR
- VEHICLE APPLICATION
- INSTRUCTIONS
- Additional information

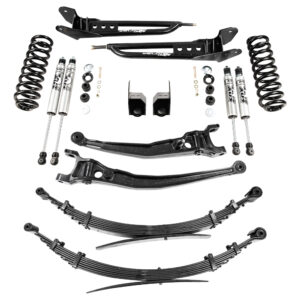

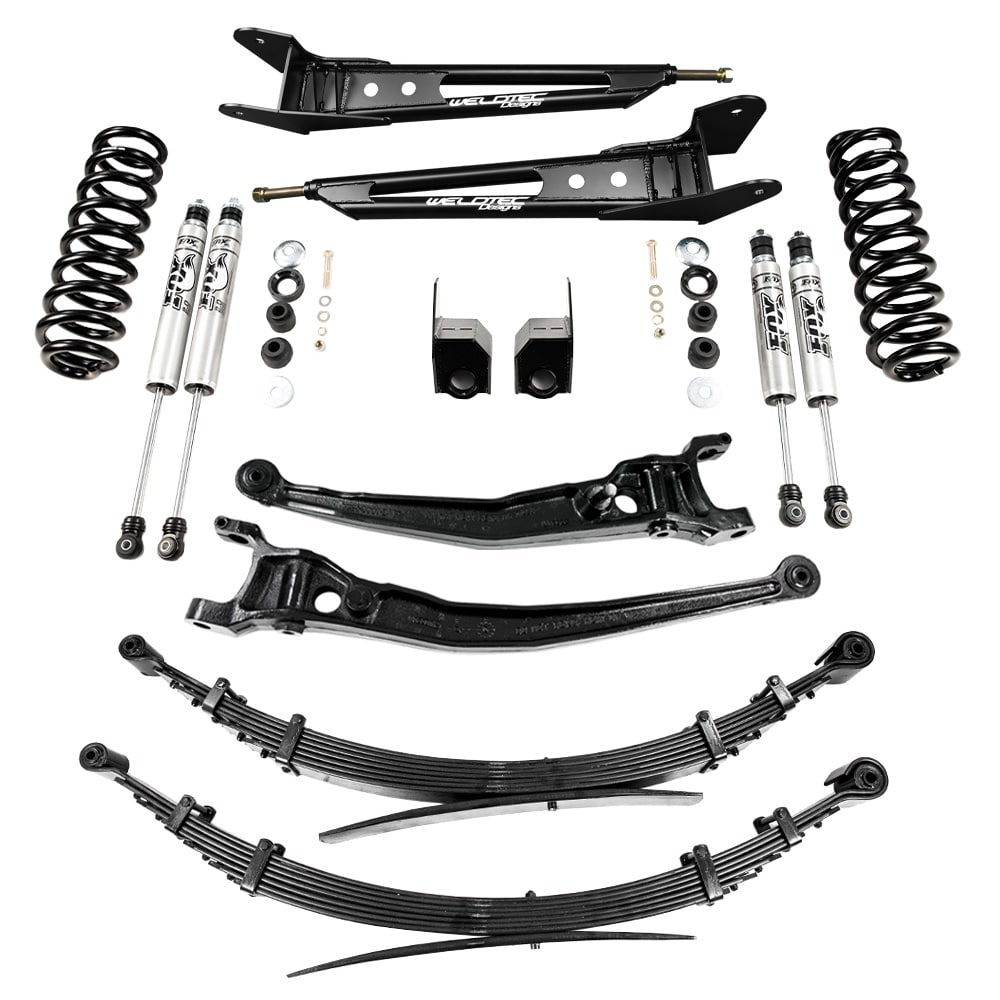

WTD – CUSTOM EXTENDED RADIUS ARMS – QTY 2
WTD – RADIUS ARM BRACKETS WELD ON – QTY 2
MOOG RADIUS ARM PIVOT BUSHINGS / SHOCK HARDWARE
SKYJACKER LIFT COILS – QTY 2
MODIFIED IBEAMS WITH MOOG PIVOT BUSHINGS – QTY 2
CUSTOM PROGRESSIVE LIFT LEAF SPRINGS – QTY 2
FOX PERFORMANCE SERIES 2.0 SMOOTH BODY IFP SHOCK QTY 4
***KIT DOES NOT INCLUDE/REQUIRE AFTERMARKET U-BOLTS***
Are you looking to improve overall driving performance and run bigger tires?
The Baja Grocery Getter Kit uses a combination of key components to give you the best van suspension available. For starters, we use a larger lift coil with a higher spring rate to give you a better ride and more wheel travel. To assist with the additional wheel travel, we added a longer Fox Shock to control high and low speed driving. Our extended radius arms move the front wheels forward while reducing caster change as the wheels move up and down. Our modified I-beams correct the camber by adding the lift coil with no need for drop brackets while not upsetting the RSC (ride stability control). Utilizing all of these components together allows you to run a 33″ tire with the option to run a 35″ (cutting required).
The progressive custom rear leaf springs significantly improve ride quality and work in tandem with the front suspension upgrades. Our custom long travel leaf springs will give you the added performance you desire while eliminating the need to run a block in the rear. The entire lift is built into the arc of the leaf spring, designed to make the rear suspension more progressive. The rear Fox Shocks help reduce bounce and sway while improving other factory know issues. Whether you’re on the street or in the dirt, the Complete Performance Package for your Ford E-Series will drive and ride completely different!
***PLEASE READ CAREFULLY***
THERE IS AN ADDITIONAL $500 CORE CHARGE FEE ON ALL KITS THAT ARE SHIPPED/PICKED UP. This cost is not included in the price of the kit. You will be contacted after your online purchase to pay this core charge. The $500 is 100% refundable once we receive your old I-Beams back within 30 days. If an extension is needed please let us know. Customer is responsible for shipping costs associated with returning the I-Beam cores.
***IF YOUR VAN IS NOT STOCK, WE WILL NEED THE WEIGHT OF YOUR REAR AXLE IN ORDER TO BUILD THE LEAF SPRINGS. ADDITIONAL COSTS MAY APPLY***
LIFT | WHEEL TRAVEL | WHEEL SIZE | LUG PATTERN | BACKSPACING | OFFSET | BORE | TIRE SIZE |
---|---|---|---|---|---|---|---|
5" FRONT | 3.5" REAR | 10’’ FRONT, 12’’ REAR | 17X8.5, 17X9 | 8X6.5 | 4.75 | 0MM THROUGH -18 | 131 | 33" | 35" |
INSTALL – $2160 (12 HRS) TYPICAL STANDARD PASSENGER VAN ***THERE ARE EXCEPTIONS TO THIS PRICE***
ALIGNMENT – $320
YEAR | MAKE | MODEL |
---|---|---|
1992-2007 | 2008-CURRENT | FORD E-SERIES | E-150 | E-250 | E-350 2WD |
Weight | 427 lbs |
---|---|
Dimensions | 48 × 40 × 25 in |
