WTD – Chevrolet Express/GMC Savana 3’’ TIG Welded Spindle
$1,600.00
***6-8 Week Lead Time***
15 in stock (can be backordered)

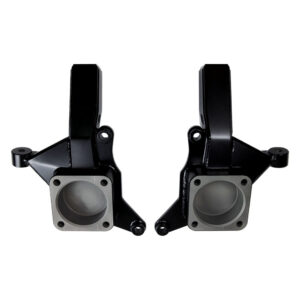

3’’ LIFT SPINDLES – QTY 2
WeldTec Designs has developed our very own Chevrolet Express/GMC Savana 3″ Spindle. Our lift spindles are comprised of chromoly steel machined parts, then TIG welded for maximum strength. The 3″ lift spindle utilizes all factory mounting points in order to keep the stock steering geometry. These spindles are designed to use your stock upper and lower control arms. Using the spindle alone can sometimes level out your van. If needed, you can purchase Blocks and U-Bolts for the rear to level it out (match the front).
***For 2022 and up models you will have to grind part of the brake caliper mounting bracket***
| LIFT | WHEEL TRAVEL | WHEEL SIZE | LUG PATTERN | BACKSPACING | OFFSET | BORE | TIRESIZE |
|---|---|---|---|---|---|---|---|
| 3" FRONT | OPTIONAL REAR | X | 17X8.5 | 17"X9 | 8X6.5 | 4.75 | 0MM THROUGH -18MM | 131 | 31" |
INSTALL LABOR – $600 (4 HRS)
| YEAR | MAKE | MODEL |
|---|---|---|
| 2003-CURRENT | CHEVROLET EXPRESS/GMC SAVANA | 2500/3500 2WD |
| 2003-2020 | CHEVROLET EXPRESS/GMC SAVANA | 4500 2WD |
Chevrolet Express 3" Spindle Instructions
CE-3LS Instructions
