- WHAT’S INCLUDED
- DESCRIPTION
- TECH SPECS
- INSTALL LABOR
- VEHICLE APPLICATION
- INSTRUCTIONS
- Additional information

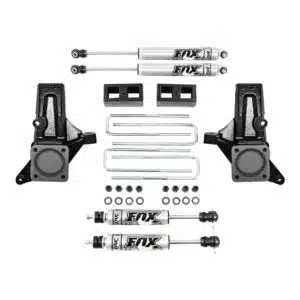

3’’ LIFT SPINDLE – QTY 2
FOX PERFORMANCE SERIES 2.0 SMOOTH BODY IFP SHOCK – QTY 4
CHEVROLET EXPRESS U-BOLTS – QTY 2
BLOCKS (PLEASE SPECIFY WHAT SIZE BLOCK) – QTY 2

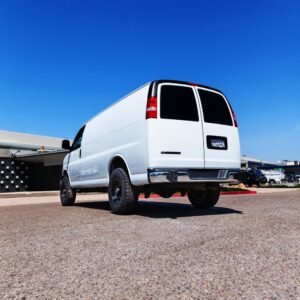

Weldtec Designs has developed our very own casted 3″ lift spindle. The 3″ lift spindles utilize all factory mounting points to retain the stock steering geometry. These spindles are designed to use your stock upper and lower control arms. Using the spindle alone can sometimes level out your van. Front and rear Fox shocks and rear blocks are included with this kit.
Wheel/Tire
Front Hub Spacer required to run a 265/75/16 tires
Casted spindles are for 17” wheels ONLY
***For 2022 and up models you will have to grind part of the brake caliper mounting bracket***
| LIFT | WHEEL TRAVEL | WHEEL SIZE | LUG PATTERN | BACKSPACING | OFFSET | BORE | TIRESIZE |
|---|---|---|---|---|---|---|---|
| 3" FRONT | OPTIONAL REAR | X | 17X8.5 | 17"X9 | 8X6.5 | 4.75 | 0MM THROUGH -18MM | 131 | 31" |
INSTALL LABOR – $1260 (7 HRS)
ALIGNMENT – $160
| YEAR | MAKE | MODEL |
|---|---|---|
| 2003-CURRENT | CHEVROLET EXPRESS/GMC SAVANA | 2500/3500 2WD |
| 2003-2020 | CHEVROLET EXPRESS/GMC SAVANA | 4500 2WD |
| Weight | 80 lbs |
|---|---|
| Dimensions | 20 × 16 × 12 in |
| Vehicle Year | 2003 – 2023 |
| Model | 2500, 3500, 4500 |
| Spindle Type | Casted, TIG Welded |
