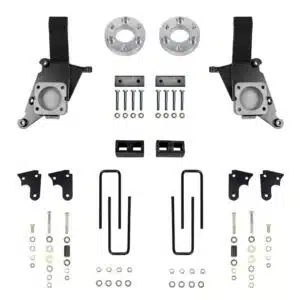

WTD – Nissan NV 2WD 5″ Lift Kit
$2,350.00
-
Available on backorder

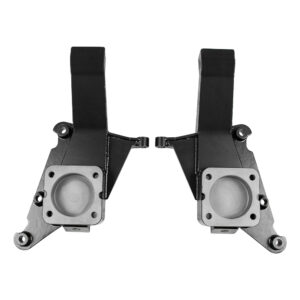

3″ LIFT SPINDLE – QTY 2
ALUMINUM SHOCK SPACER – QTY 2
4″ LIFT BLOCKS – QTY 2
U-BOLTS – QTY 2
SHOCK ADAPTORS – QTY 2
REAR SWAY BAR SPACERS – QTY 2
BRAKE LINE SPACERS AND HARDWARE
OPTIONAL ADD-ONS:
CUSTOM PROGRESSIVE LEAF SPRING
KING 2.5 COILOVERS WITH REMOTE RESERVOIR (FRONT)
REAR SHOCK ADAPTORS FOR KING 2.0 SHOCKS
KING 2.0 SHOCKS (REAR)
Weldtec Designs 5″ Nissan NV lift kit is the ultimate way to lift your van. This kit consists of a 3″spindle matched with a 2″ spacer, or optional 2.5″ KING coilovers. Our lift spindles are custom fabricated and welded for maximum strength. The 3’’ lift spindle utilizes all factory mounting points in order to keep the stock steering geometry. These spindles are designed to use with your stock upper and lower control arms. By adding KING 2.5 coilover shocks, with remote reservoir allows for an adjustable ride height from 1.5-2.5″ in the front suspension.
In the rear you have two options:
Option 1: Run a block with shock extensions
Option 2: Custom progressive leaf springs with 2.0 KING Shocks.
| LIFT | WHEEL TRAVEL | WHEEL SIZE | LUG PATTERN | BACKSPACING | OFFSET | BORE | TIRE SIZE |
|---|---|---|---|---|---|---|---|
| 5" FRONT | 4" REAR | 8’’ FRONT, 8’’ REAR | 17X8.5 | 17X9 | 8X6.5 | 4.75 | 0MM - +12MM | 131 | 33" | 35" |
| 18x9 | 8X6.5 | 0MM - +18MM |
INSTALL LABOR – $1200 (8 HRS)
| YEAR | MAKE | MODEL |
|---|---|---|
| 2012-2021 | NISSAN | NV 2500/3500 |
NISSAN NV 5" LIFT KIT INSTRUCTIONS
NNV-5LK Instructions
