WTD – Chevrolet Express/GMC Savana Class C 5″ Suspension Lift Kit

$4,100.00

***PLEASE ALLOW 2-4 WEEKS LEAD TIME FOR LEAF SPRINGS***

Available on backorder

Mandatory Add-on for 16" Wheels

All builds using 16" wheels w/ casted spindles must use this spacer kit

Product total

Options total

Grand total

3″ CASTED LIFT SPINDLES – QTY 2
2″ ALUMINUM COIL SPACERS – QTY 2

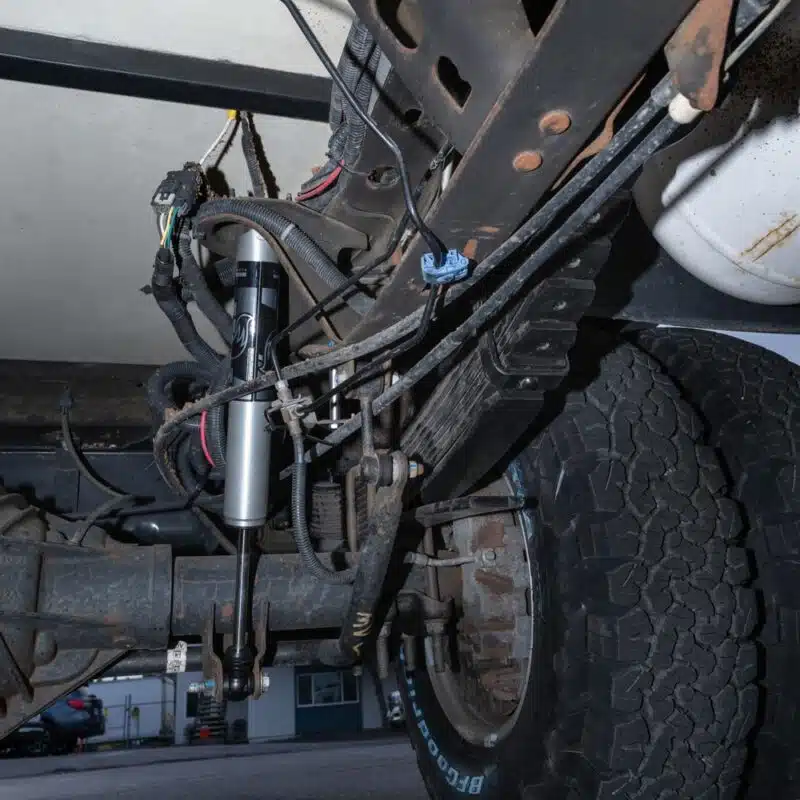

FOX PERFORMANCE SERIES 2.0 SMOOTH BODY IFP SHOCK – QTY 4
PROGRESSIVE LEAF SPRINGS – QTY 2

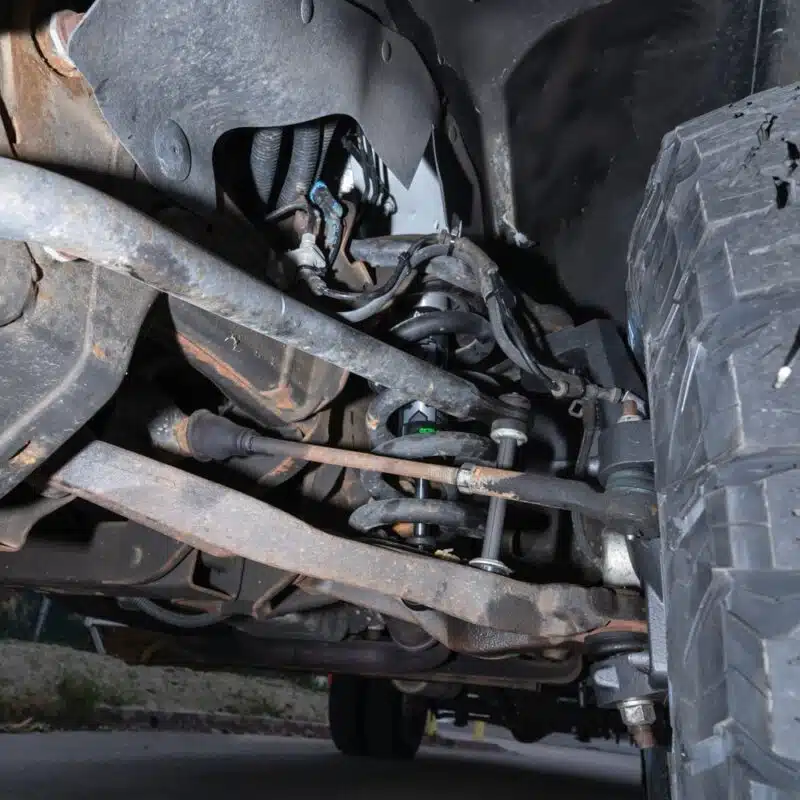

The WTD – Chevrolet Express 5″ Lift Kit is designed to do more than just lift your van—it’s engineered to enhance your suspension performance for a smoother, more controlled ride both on and off the road. This kit features 3” chromoly steel lift spindles, precision-machined and TIG welded for maximum strength, utilizing all factory mounting points to maintain your van’s stock steering geometry.

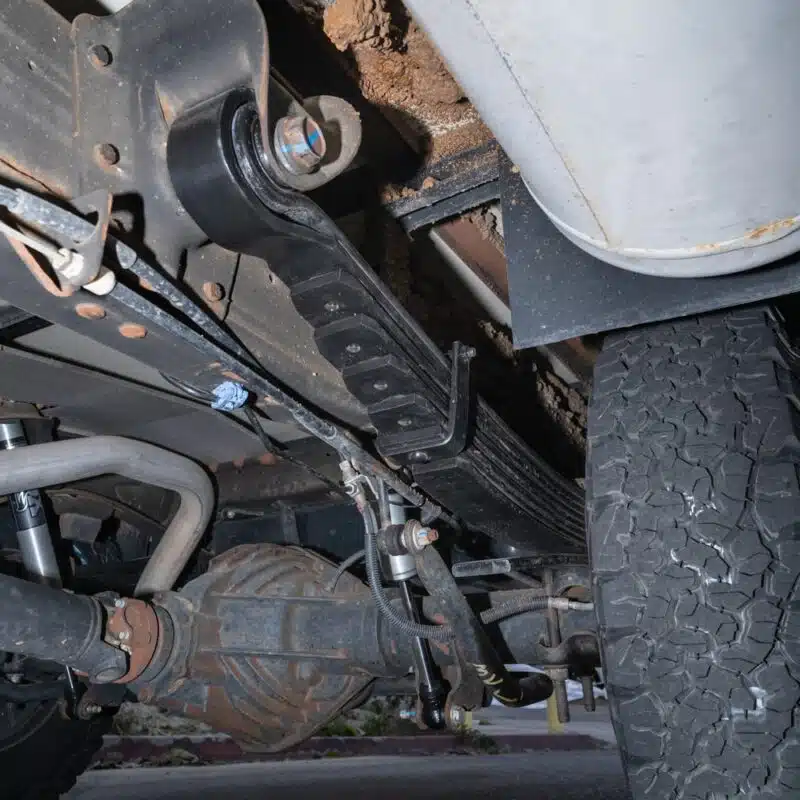

To achieve a total of 5” of front lift, we’ve added 2” billet aluminum front coil spacers, providing the perfect combination of height and performance. In the rear, a set of progressive leaf springs with the lift built directly into their arc complements the front suspension, offering improved ride quality, stability, and load-carrying capacity.

Key Features:

  • 5” Front Lift: Combination of 3” chromoly steel lift spindles and 2” billet aluminum front coil spacers
  • Chromoly Steel Spindles: Precision-machined and TIG welded for superior strength and durability
  • Progressive Rear Leaf Springs: Built-in lift arc for a smoother, more responsive ride
  • Factory Steering Geometry: Maintains stock alignment using all factory mounting points
  • Stock Control Arm Compatibility: Works seamlessly with your stock upper and lower control arms

Important Fitment Notes:

  • Non-Stock Vehicles: If your vehicle has modifications, we will require your rear axle weight to custom-build the leaf springs for the correct ride height. Additional fees may apply.

If you’re looking for a lift kit that not only boosts your van’s stance but also delivers exceptional ride quality, the WTD – 5″ Lift Kit is the perfect choice—engineered for durability, performance, and comfort.

LIFTWHEEL TRAVELWHEEL SIZELUG PATTERNBACKSPACINGOFFSETBORETIRESIZE
5" FRONT | 5" REARX16X68X6.5X102130.18235/85/16

INSTALL – $3240 (18 HRS) (TYPICAL STANDARD PASSENGER VAN, THERE ARE EXCEPTIONS TO THIS PRICE)
ALIGNMENT – $225

YEARMAKEMODEL
2003-CURRENTCHEVROLET EXPRESS/GMC SAVANA2500/3500 2WD
2003-2020CHEVROLET EXPRESS/GMC SAVANA4500 2WD
Weight 90 lbs
Dimensions 20 × 16 × 12 in
