WTD – Chevrolet Express/GMC Savana 3’’ Cast Spindle
$1,100.00
Available on backorder
- WHAT’S INCLUDED
- DESCRIPTION
- TECH SPECS
- INSTALL LABOR
- VEHICLE APPLICATION
- INSTRUCTIONS
- Additional information

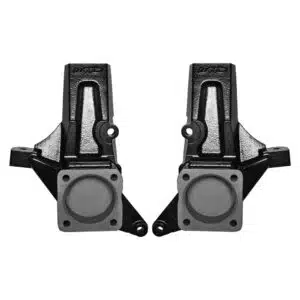

3’’ LIFT SPINDLES – QTY 2
Take your Chevrolet Express or GMC Savana to new heights with the WTD – 3″ Cast Lift Spindle, engineered for a perfect blend of lift and performance. Designed to utilize all factory mounting points, this spindle maintains your stock steering geometry, ensuring smooth handling both on and off the road.
Key Features:
- 3” Lift: Provides additional ground clearance while keeping factory ride quality intact
- Factory-Compatible: Uses your stock upper and lower control arms for a hassle-free install
- Maintains Steering Geometry: Designed to preserve factory alignment specs for safe, predictable handling
- Leveling Options: Using the spindle alone can level out your van. For a perfectly even stance, add rear blocks and U-bolts to match the front
Wheel/Tire Fitment:
- 17” Wheels ONLY: Casted spindles are specifically designed for 17″ wheels
- 265/75/16 Tires: Requires a front hub spacer for proper clearance
Important Installation Note:
- 2022 & Newer Models: You will need to grind part of the brake caliper mounting bracket for proper fitment
Elevate your van’s performance and stance with the rugged reliability of the WTD – 3″ Cast Lift Spindle—built for adventure, designed for precision.
LIFT | WHEEL TRAVEL | WHEEL SIZE | LUG PATTERN | BACKSPACING | OFFSET | BORE | TIRESIZE |
---|---|---|---|---|---|---|---|
3" FRONT | OPTIONAL REAR | X | 17X8.5 | 17"X9 | 8X6.5 | 4.75 | 0MM THROUGH -18MM | 131 | 31" |
INSTALL LABOR – $720 (4 HRS)
YEAR | MAKE | MODEL |
---|---|---|
2003-CURRENT | CHEVROLET EXPRESS/GMC SAVANA | 2500/3500 2WD |
2003-2020 | CHEVROLET EXPRESS/GMC SAVANA | 4500 2WD |
Chevrolet Express 3" Spindle Instructions
(pdf, 495KB)
CE-3LS Instructions
Weight | 64 lbs |
---|---|
Dimensions | 20 × 16 × 8 in |
